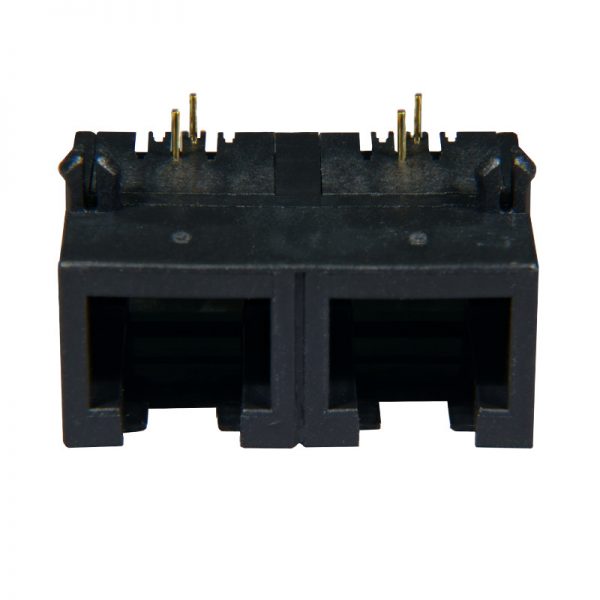

6P2C RJ11 1×2 Port Ganged PCB Modular Jack

SKU: 889-W-745-6215-1 Categories: , , Tags: , , , , , , , ,



Material Specs

Housing: PBT polyester, UL94V-0, Mixed Glass Fiber, Standard color – BLACK

Contacts: 0.45mm diameter PHOS-BRONZE plated with HARD GOLD



Electrical Specs

Relative Humidity: 70%±10%RH

Operating Temperature: -40ºC to 85ºC

Current Rating: 1.5A max

Voltage Rating: 150VAC max

Contact Resistance: 30mΩ max

Insulation Resistance: 500MΩ min @ 500VDC

Dielectric Strength: 1000Vrms @ 60Hz



Cavity meets FCC part 68, subpart F.

$0.79

Available on backorder

Minimum quantity 100. Save up to 50%
QuantityDiscountDiscounted price
100 - 49915%$0.67
500 - 99930%$0.55
1000 +50%$0.40
