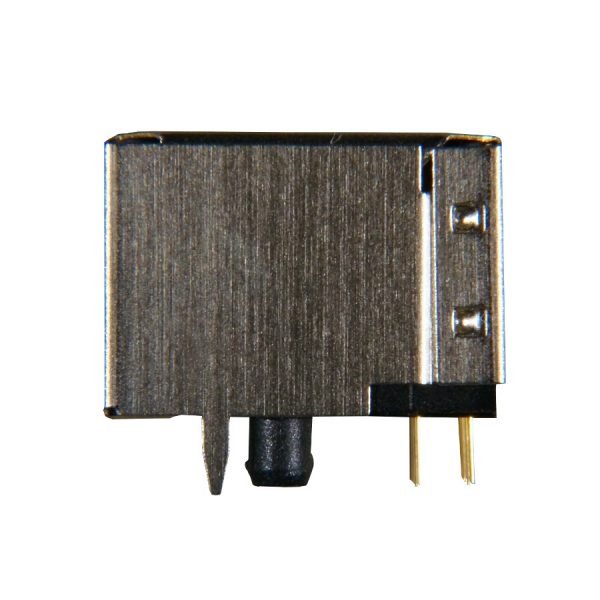

8P8C RJ45 Side Entry Shielded Round Pin PCB Modular Jack

Material Specs

Housing: DSM STANYL TE250F6 (NYLON-46), Heat Deflection Temp. 290°, UL94V-0, BLACK

Contacts: 0.45mm dia. ROUND PHOS-BRONZE PLATED with HARD GOLD in solder area

Shield: 0.2mm thick COPPER ALLOY PLATED with NICKEL

Electrical Specs

Relative Humidity: 70%±10%RH

Operating Temperature: -40ºC to 85ºC

Current Rating: 1.5A max

Voltage Rating: 150VAC max

Contact Resistance: 30mΩ max

Insulation Resistance: 500MΩ min @ 500VDC

Dielectric Strength: 1000Vrms @ 60Hz



$1.19

In stock

Minimum quantity 100. Save up to 50%
QuantityDiscountDiscounted price
100 - 49915%$1.01
500 - 99930%$0.83
1000 +50%$0.60
