Extension Test Lead Specification

• Length: 3 feet / 1 meter
• Diameter: 18AWG
• Current: 15A
• Voltage: 2000 V
• Temperature: 80 C
• Connector: Banana Plug Male (Straight and 90 Degree)

Mini Hook Specification​

• Length: 2.2 inch
• Hook Extension: 0.2 inch
• Connector: Banana Plug Female

Test Probe Specification

• Length: 4 inch
• Tip Length: 0.75 inch
• Voltage: 1000V CAT II

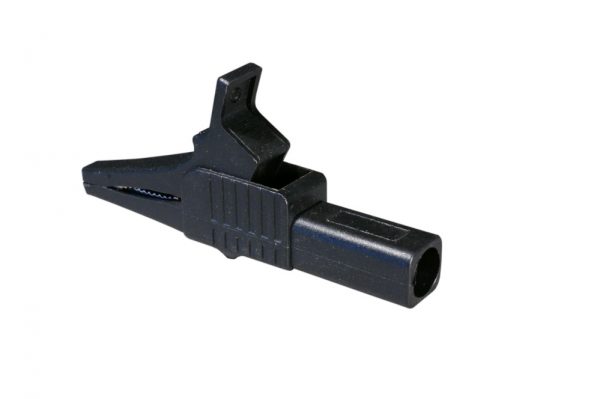

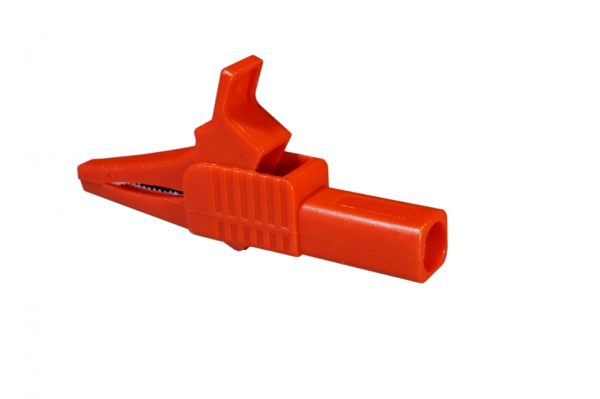

Alligator Clip specification

• Length: 3.25 inch
• Jaw Opening: 1.0 inch
• Connector: Female Banana Plug
• Body Material: Nickle-plated
• Rating: CAT III 1000V 32A

Banana Plug Specification

• Type: Male
• Size: 4mm

Application

• Automotive
• Telecommunication
• Industrial
